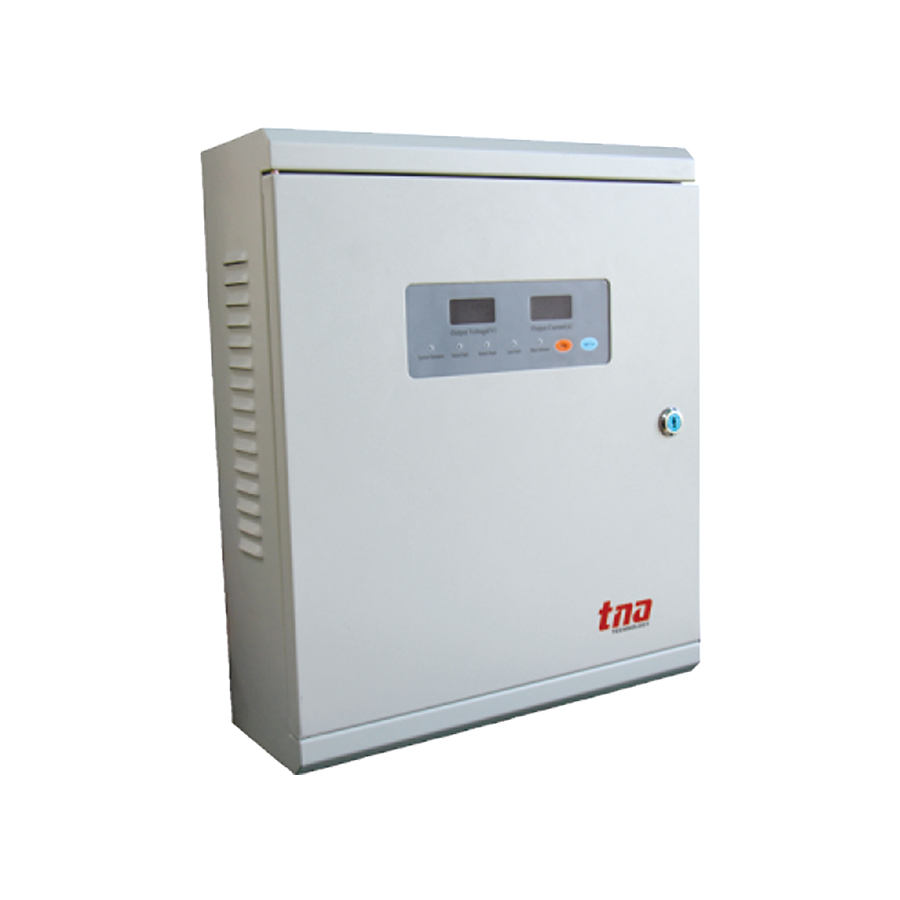

Configurable Intelligent Power Supply Unit

Configurable Intelligent Power Supply Unit

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW,FCA
    Min. Order: 1 Bag/Bags
    Packaging: Carton
    Brand: TNA
    Transportation: Ocean,Air
    Place of Origin: SHENZHEN
    Port: YANTIAN,SHEKOU

Basic Info

Model No.: TX24-10A

Product Description

Intelligent Power Supply Unit

TX24-10A Intelligent PSU is to solve the problem of power supply and development of field equipment, power output is about 265W(DC26.5V/10A). The main function of the power supply for the conversion of AC220V voltage to DC26.5V, and with the preparation of electric power supply and power charging function, the standby battery provides the output of the DC24V/12Ah in the AC220V to stop the power supply, start to work with the equipment on the spot to play the role of continuation. The power display function is comprehensive, there are output voltage, output current display, the main power fault, Battery power fault / charge fault(battery fault and charge fault share the LED indicate and fault flag), circuit fault indication, and overload, over current, short circuit protection function. TX24-10A Intelligent PSU has the function of bus network, which can be connected with the TX7004 intelligent fire alarm controller of the company, and provides the corresponding linkage / fault information for the alarm controller.
The unit manufactured base on the requirement of EN 54 part 4, European Standard. The unit is aesthetically pleasing with unobtrusive design that will complement modern building designs and its plug-in type assembles make installation and maintenance more convenient to the installer. The unit is compatible to the TX7004 Analogue Intelligent Fire Alarm Control Panel, produced by single manufacture T&A, to avoid addressable communication compatibility problem.


Feature and Benefits

  • EN54-4 Compliance
  • Intelligent 5A Power supply unit
  • Can sit on the loop to monitor by the Fire control panel Digital display showing output voltage and load current Overload, overcharge and over usage protection
  • Fully Monitored with Self-test function Wall mount

Technical Specification

  • Compliance EN54-4
  • Power Rating
  • Power Supply Mains: AC220V(110-240V),50/60Hz, <130W
  • Backup 24VDC/12Ah sealed lead-acid battery (Not included)
  • Output Power 120W (24VDC/5A)
  • PSU
  • Protocol/Addressing T&A, Value range from 1 to 254 Mains and backup switching time No delay.
  • Indicator Numerical Display
  • Material / Colour Flat sheet Metal / Light Gray
  • Dimension 400mm x 320mm x 120mm
  • IP Grade IP30
  • Operating Environment
  • Temperature -10℃~+60℃
  • Relative Humidity ≤95%, non-condensing
  • Atmosphere 86~106KPa
Intelligent Power Supply Unit
